What is the Battery’s Depth of Discharge (DoD)?

The Depth of Discharge (DoD) is one of the key specifications of a battery, but despite it’s relevance, it is often glossed over: It describes what percentage of battery capacity can be discharged safely without harming a battery’s lifetime and therefore significantly impacts a battery’s lifetime.

This article explains what the DoD is, how it impacts a battery’s health and what DoD your solar battery should have.

The topic in a nutshell

Depth of Discharge (DoD) determines battery lifespan

A battery's DoD defines how much of its capacity can be safely used without degrading performance.

Higher DoD means more usable energy but varies by battery type

LFP batteries offer 100% DoD with minimal impact, while NMC degrades faster at high DoD levels.

Respecting DoD extends battery life and efficiency

Exceeding recommended DoD strains the battery, reducing capacity and increasing wear over time.

Get a personalised assessment for the right home battery for you in a consultation.

What is a battery’s maximum Depth of Discharge?

Depth of Discharge (DoD) refers to the percentage of a battery’s total energy capacity that can be used safely without shortening its lifespan. A higher DoD means you can utilise more of the battery’s capacity before needing to recharge it. For most batteries, a DoD of at least 80% is recommended for optimal performance and longevity. For example, Nickel Manganese Cobalt (NMC) batteries typically have a DoD range of 80–90%, while a typical Lithium Iron Phosphate (LFP) battery often has a 100% DoD.

What DoD should I be looking for?

The optimal Depth of Discharge (DoD) depends largely on your battery’s chemistry. When evaluating batteries, it’s crucial to consider usable capacity alongside battery longevity. These metrics are interdependent—focusing on just one can be misleading.

For example, a 10 kWh battery with a 100% DoD but a lifespan of only 1,000 cycles delivers 10,000 kWh over its lifetime. In contrast, a 10 kWh battery with a 50% DoD but 3,000 cycles can provide 15,000 kWh over its lifetime, assuming it is used within the manufacturer’s recommended parameters.

Typical home battery DoDs range from 80% to 100%, with lithium-ion and lithium iron phosphate (LiFePO4) batteries leading the way at 95–100%. However, it’s important to note that many manufacturers simplify their marketing by advertising a 100% DoD for their batteries, even though the batteries are often oversized. For instance, a "10 kWh battery" might actually have a 12 kWh capacity, meaning its effective DoD is closer to 83%.

Lastly, always review the battery’s warranty terms. Manufacturers typically guarantee a certain number of cycles or years of operation at the specified DoD, which directly affects the value and longevity of your investment.

What DoD do the key batteries have?

When choosing a home battery, comparing Depth of Discharge (DoD), cycles, and chemistry across brands is essential to understanding both performance and longevity. Below is a breakdown of some of the leading battery options on the market.

Company Battery name Chemistry Depth of discharge Cycles Datasheet link
InstaGroup InstaGen LFP 100% 8000 Datasheet
Fox ESS EQ4800 LFP 90% 6000 Datasheet
GivEnergy All In One (AIO) LFP 100% 5000 Datasheet
MyEnergi libbi LFP 90% 10000 Datasheet
Tesla Powerwall 2 NMC 100% 3650 Datasheet
Tesla Powerwall 3 LFP 100% 10000 Datasheet
Alpha ESS SMILE-G3-T10 LFP 95% 10000 Datasheet
Table 1: Comparison of battery specifications across companies

As you can see, most battery specs are similar—it ultimately comes down to price and software capabilities. The real difference lies in how optimisable your battery is for your specific needs. Interestingly, Tesla transitioned its Powerwall 3 to LFP technology, replacing the NMC chemistry used in the Powerwall 2. This highlights how LFP technology continues to dominate with its high DoD and extended cycle life.

How does DoD affect battery lifetime?

The maximum Depth of Discharge is a critical parameter that should always be respected. Exceeding the recommended DoD can have serious implications for the longevity of your battery. For instance, cycling a 10 kWh battery within its 80% DoD limit helps preserve the lifespan specified in the warranty. However, discharging beyond this benchmark—down to 10% of the battery’s total capacity, for example—can significantly shorten its lifetime.

The impact of DoD on battery life occurs in several key ways:

Firstly, consistent use of a battery at its maximum Depth of Discharge (DoD) or beyond places strain on its internal chemical structure, diminishing its capacity to hold a charge over time and reducing overall efficiency. The extent of this degradation varies by battery chemistry: For instance, Lithium Iron Phosphate (LFP) batteries experience cathode degradation and loss of active lithium ions, reducing their ability to charge effectively. Nickel Manganese Cobalt (NMC) batteries, on the other hand, suffer from erosion of protective layers, leading to micro short circuits and potential failure.

Secondly, operating a battery at deep states of discharge increases internal resistance, particularly during the transition from discharge to charge. This heightened resistance reduces energy efficiency by generating excess heat and forces the battery to work harder, accelerating wear and capacity loss over time. Repeated deep discharges can also cause thermal stress, especially if recharging is aggressive, potentially leading to overheating, swelling of battery cells, or, in extreme cases, fire risks. These risks are particularly pronounced in chemistries less tolerant to deep discharges, such as NMC or lead-acid batteries. Respecting the recommended DoD is essential to minimise these issues and ensure safe, efficient operation.

Evidently, all of these factors contribute to reducing the battery’s usable capacity over time or accelerating its progression toward an unfixable breaking point, ultimately shortening the product’s lifetime. Maintaining the recommended DoD is therefore essential for protecting your battery’s performance, safety, and investment.

What is the battery chemistry’s impact on DoD?

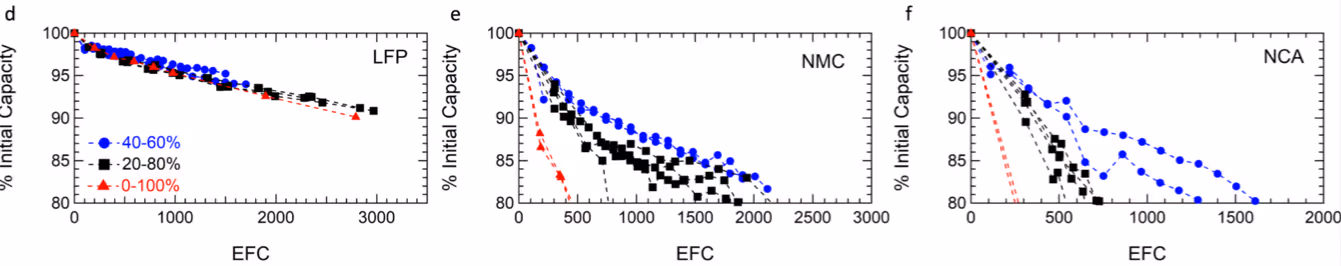

Figure 1: Impact of depth of charge on different battery chemistries

Multiple instances of academic research and testing have shown that different battery chemistries react very differently to Depth of Discharge (DoD). Lithium-ion batteries, especially LFP (Lithium Iron Phosphate), can handle higher DoD levels, maintaining up to 100% DoD with minimal impact on lifespan. In contrast, NMC (Nickel Manganese Cobalt) and lead-acid batteries see much shorter lifetimes when discharged deeply, making lower DoD ranges critical for these chemistries.

The takeaway? High-quality home batteries today almost exclusively use LFP technology because of its ability to operate reliably at higher DoD levels, offering more usable energy and longer lifespans. On top of this, LFP batteries are also safer and more sustainable.

Characteristics NMC LFP
Higher power density
Low weight per capacity
Safer
More sustainable
Allows for more charging cycles
Table 2: Comparison of NMC and LFP battery characteristics

Understandably, battery jargon can be tricky to navigate—get in touch for a free consultation via the form below for a free consultation with our experts to ensure you make the right choice for your home energy needs!
